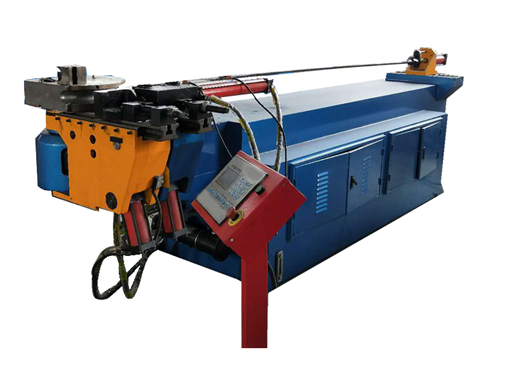

89NC Semi-automatic single-head hydraulic pipe bending machine

Online Message

Welcome to the online message!
Please fill in your contact information and suggestions! Thank you!


89NC Fully automatic hydraulic pipe bending machine

Semi-automatic 2D plane hydraulic pipe bending machine

It is mainly used for bending and forming of pipes in various industries. With the design of molds, it has many advantages for various metal pipes, such as multi-function, reasonable structure and simple operation.

In addition to the bending function, the machine can also design the bending machine as a special bending device of different shapes according to the needs of the bending process. Compared with the numerical control bending equipment, it has the characteristics of low price and convenient use. The processing equipment market dominates the product position.

Pipe bending capacity: pipe diameter 5-219mm

It has high efficiency, mass production and low cost advantages. It is used in the manufacture of parts and fittings, health sports equipment and medical equipment for furniture manufacturing and so on.

Based on the features of The 89NC Fully automatic hydraulic pipe bending machine, we design the machine for your reference:

Technical parameters:

Semi-automatic full hydraulic pipe bending machine performance

l .Adopting integrated body, the structure is firm and stable;

2.The whole head is cast in one-time casting of ductile iron (QT500-7), which is sturdy and durable;

3.The control system adopts microcomputer NC control, and the electrical components are all selected from world famous brands;

4.LCD screen Chinese display (other languages can be customized), contact buttons, easy to operate;

5.Mobile foot switch has start and emergency stop functions;

6.Core bends and coreless bends can be set as needed;

7.Memory capacity can store 40 sets of curved pipe file data;

8.Hydraulic control elbow accuracy ± 0.5 °;

9.With power-off memory function, data can be saved;

10.With bending angle compensation function to achieve precision bending angle

11.Manual, semi-automatic and fully automatic operation can be set;

12.There is a counting function for the work piece;

13.Automatic detection error or machine failure function, and displayed on the screen for easy operator elimination;

14.equipped with oil temperature circulating water cooling device;

15.The direction of the bend is clockwise (optional bender is available as needed).

No. Name Parameters Remarks
Example of bending radius 1.5D
1 Maximum applicable carbon steel pipe Φ88.9x 4.0t
2 Maximum applicable stainless steel pipe Φ82.55x 3t
3 Maximum core length (a) 2700mm
4 Maximum bending diameter 480mm
5 Maximum bending angle 185° customize
6 The number of bends per pipe can be set 16 Expandable
7 greatest pressure 14Mpa Adjustable
8 Machine Size 420 x 115 x 120
9 Machine Weight 2300Kg

More machine pictures of 89NC Fully automatic hydraulic pipe bending machine:


1.Do you have after sales support?

Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

2.What can you do if the machine broken?

Our machine’s warranty period is 12months. And if the broken parts can’t be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal The 89NC Fully automatic hydraulic pipe bending machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
